Category Archives: Web Service

Hide form fields using JQuery and SharePoint Web Services

There are many occasions when we need to hide certain form fields based on some permission / group settings. Well, there is an easy way of achieving this using a JQuery plugin called “SPServices” which is free to use.

Using this plugin, you can call any in built SharePoint web service, get the value retrieved by the web services and use it in your form easily.

In this example, I have three types of users for a specific list which are “Users”, “Moderators” & “Admin”. I would like to check the current user which group he belongs and based on that I am going to hide/show some fields.

First of all, Download the SPServices plugin from here and then open your form in Advanced Mode using SharePoint Designer 2010 and look for the following line:

<asp:Content ContentPlaceHolderId="PlaceHolderBodyAreaClass" runat="server">


Add the script for SPServices:




<script type="text/javascript" src="http://(YOUR SITE URL)/(SAVED FOLDER FOR SPSERVICES)/jquery.SPServices-0.6.2.min.js"></script>




and add the following code under that




<script type="text/javascript">
    $(document).ready( function ()
    {
                    var isUserOnly = false; //User group member only
            var isModerator= false;
            var isAdmin=false;
                    var MODERATORGROUP = "Moderators"; // SPGroup named “Moderators”
                    var ADMINGROUP = "Admin";  // SPGroup named “Admin”

                    $().SPServices
                    ({
                      operation: "GetGroupCollectionFromUser", //Calling GetGroupCollectionFromUser.asmx web service
                      userLoginName: $().SPServices.SPGetCurrentUser(), //Calling Current User
                      async: false,
                      completefunc: function(xData, Status)
                      {
                                        $(xData.responseXML).find("Groups").each(function() //Retrieving the values from Group method of Web Service
                                        {
                                             $(this).find("Group").each(function()  //Parsing through all the groups the current user belongs to
                                             {
                        //Checking whether Current User belongs to Admin Group

                                                  if(($(this).attr("Name").toLowerCase() === ADMINGROUP.toLowerCase()))
                                                    isAdmin = true;
                        //Checking whether Current User belongs to Moderators Group

                          else if(($(this).attr("Name").toLowerCase() === MODERATORGROUP.toLowerCase()))
                            isModerator=true;

                        //If Current User does not belong to Moderators or Admin, then definitely a normal user

                          else
                            isUserOnly=true;
                                             });
                                        });
                         }
                   }); // Closing SPServices Method

                   if(isUserOnly)
                   {

                        //Hide fields as this user is Not a member of Modeartora or Admin Group

               jP.Form.readForm("http://teamradiant/sites/rfc/").Comments.hide();
               jP.Form.readForm("http://teamradiant/sites/rfc/").Approval.hide();
                    }
           if(isModerator)
            {
            //Hide Approval field if the current user belongs to Moderators Group

                jP.Form.readForm("http://teamradiant/sites/rfc/").Approval.hide();

            //Show Comments field if the current user belongs to Mdoerators Group

                jP.Form.readForm("http://teamradiant/sites/rfc/").Comments.hide();
            }
            if(isAdmin)
            {

            //Show both fields if the current user belongs to Admin group

                 jP.Form.readForm("http://teamradiant/sites/rfc/").Comments.show();
                 jP.Form.readForm("http://teamradiant/sites/rfc/").Approval.show();
            }

   });
</script>


After that save the Form, and check that it works!


Advertisement

















How to solve web service access problem for an anonymous enabled site in SharePoint 2010?







Recently, I was trying to build an InfoPath 2010 form in SP 2010 where I created Data Connection using UserProfileService.asmx web service within my site collection. Although, while setting up the connection I didn’t face any problem and I could see all the properties in the advanced mode for that data connection. I checked the Web Service URL directly to see the methods which would return me the required parameter.


After configuring everything, I was getting an error which stated “Unauthorized operation” while previewing the form in InfoPath:


“The SOAP response indicates that an error occurred on the server:


Server was unable to process request. —> Unauthorized operation”


I realized that some permission issue need to be resolved. I then contacted our Administrator to configure the InfoPath form services settings from the Central Admin site.


There are few things which you need to know before you can use the web services such as UserProfileService.asmx.

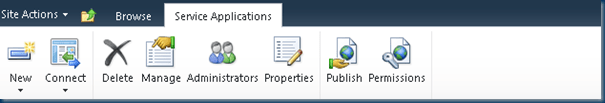

There is a service application in SharePoint named as “User Profile Service” which need to be set up or could be setup already in your farm. I will not go into the details of configuring it. After activating this service, the user who need to access the web services related to this, need to have have full permission access for this service which you can configure by selecting the service (Central Administration->Application Management->Manage Service Account) and adding the user in two categories (Administration and Permission), both of which require to provide full access for that particular user.






After spending enough time, I figured out that although, my web application was anonymously enabled, SharePoint does not allow the web services to run anonymously by any means. It has to pass through authentication in the IIS.


There are few workarounds which you can follow:


First Option: If your web application uses Windows Authentication (To Check, which authentication your web application is using, go to Central Admin->Application Management->Manage Web Applications; select your web app and click on “Authentication Providers”, under Membership zone, click on “Default”; under Authentication Type, you will see whether your site is using Windows, Forms or Single Sign on), Disable Anonymous Access for this web application and the web service will run perfectly (Remember, if you disable anonymous access at the web app level, all the site collections under that web app will automatically disable anonymous access option). This option is an easy way to fix the web service access problem if all the site collections for your web app really does not require anonymous access.


Second Option: (If you want to enable “anoymouos access”)


To let the users access your site anonymously, and at the same time to access the web service within that web app or site collection level, you will need to change your Authentication Type from “Windows” to “Form Based”. Now, I will not go into the detailed steps of configuring form based authentication for your server which is described here.


Third Option: (The Best one which suited me)


Actually, if you want to keep intact all the settings of your existing web app, and don’t want to mess up the settings, this option could be the best one for you. First of all, you will need to extend your web application for Intranet use. To do this

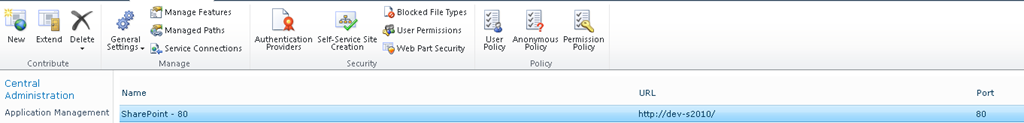

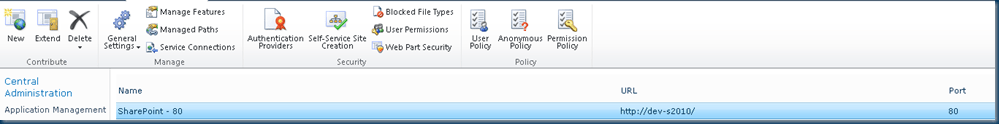

Go to Central Admin->App Management->Manage Web App, select your web app and select “Extend” from the ribbon.

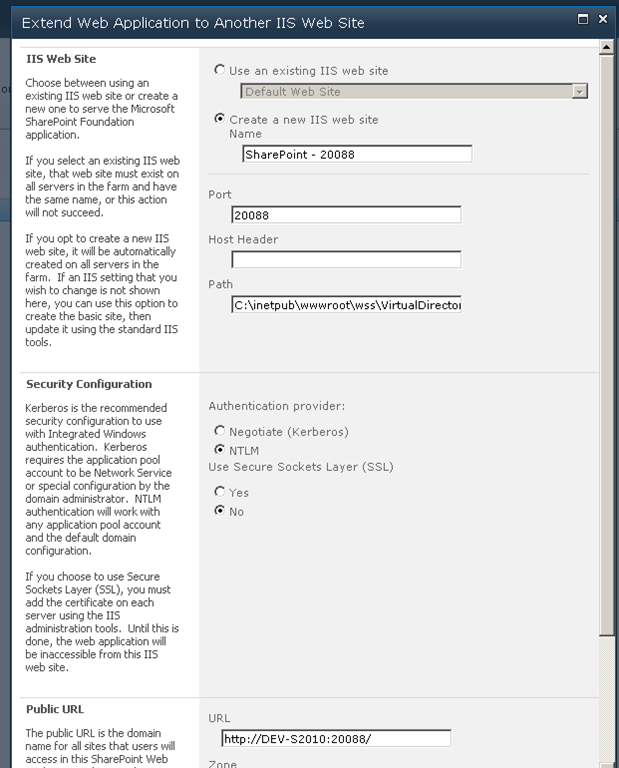

You will find the following window:

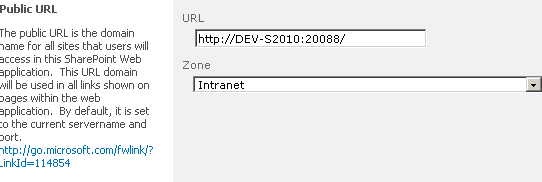

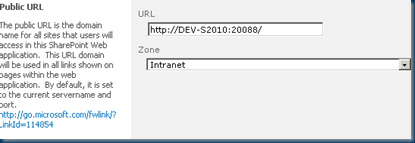

Select the Public URL Zone as “Intranet”. and make sure to Disable Anonymous Access.


Let’s say your Default Zone URL is : http://teams.SPWebApp.com/ then the extended Web Application URL would be : http://servername:portnumber/


Now, while calling the web services from InfoPath, you will need to provide the Extended Zone (Intranet) URL and things will work like charm. That means, when the web services will be called from your forms, it will call the Intranet URL which has “Anonymous Disabled” which will not interfere with your Default Zone URL which has “Anonymous Enabled”. So, you will be able to use Windows Form Authentication while providing the anonymous access feature to the users to call your required web services. Now, that’s a great workaround to avoid setting up “Form Based Authentication” (second option).
